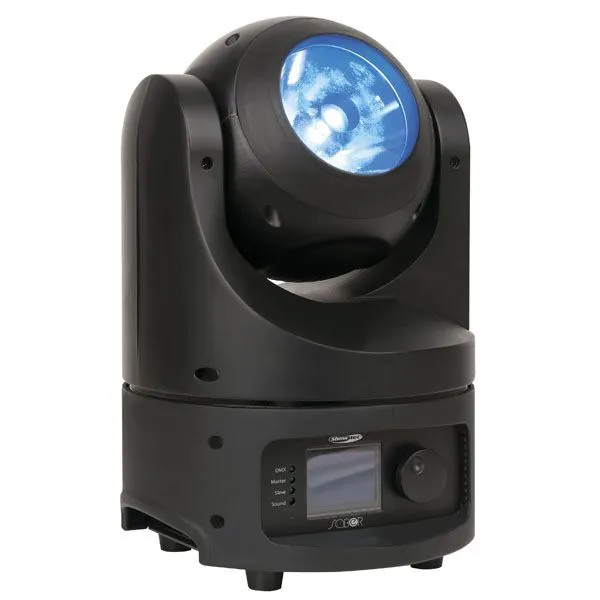

Showtec Saber

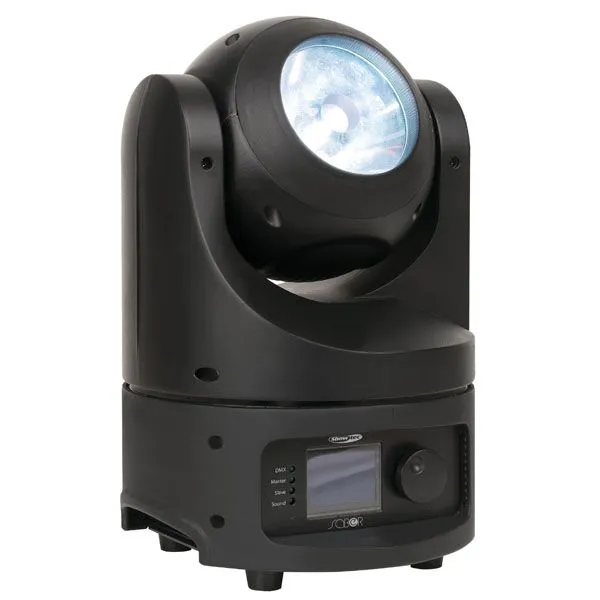

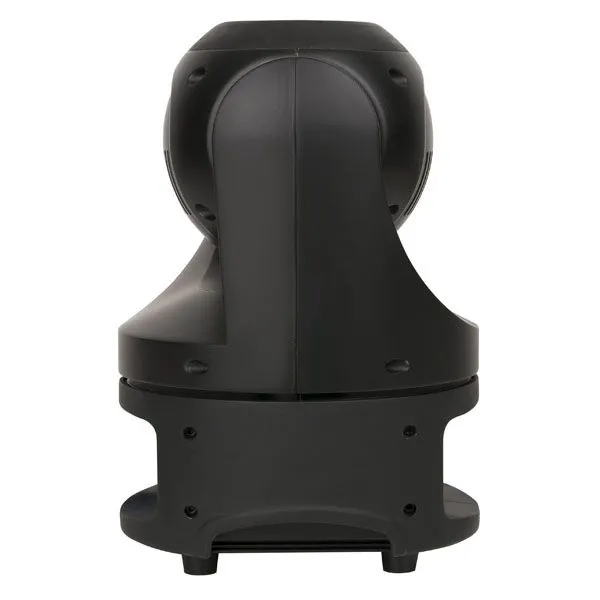

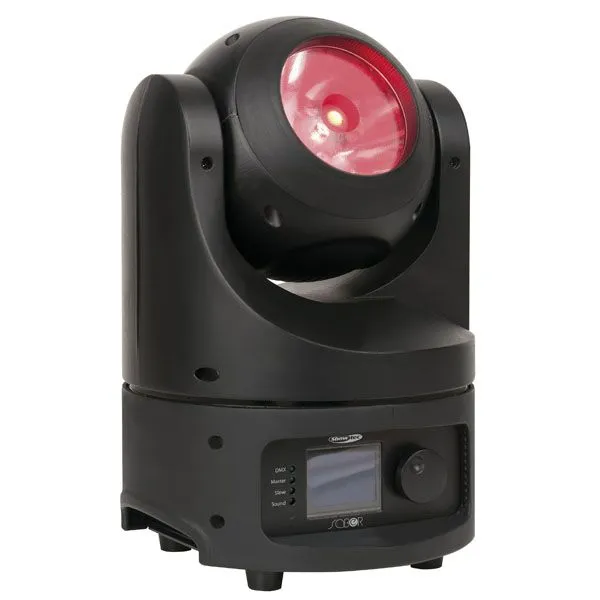

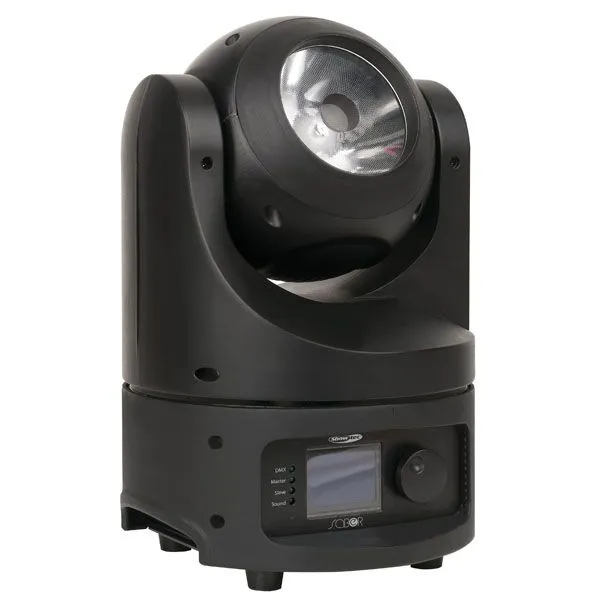

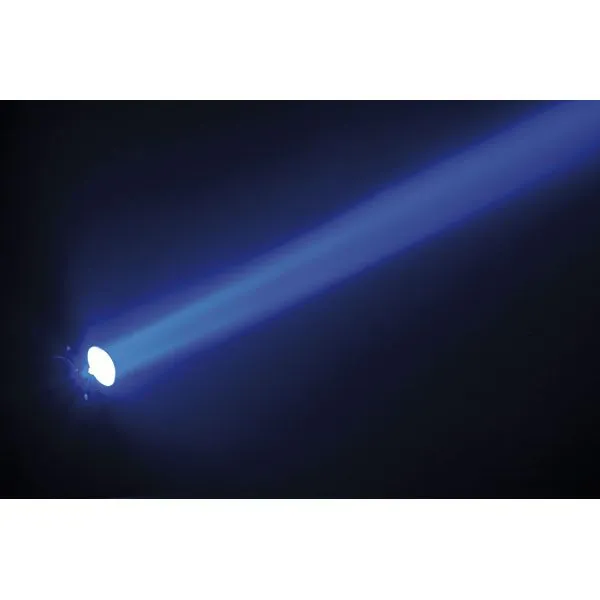

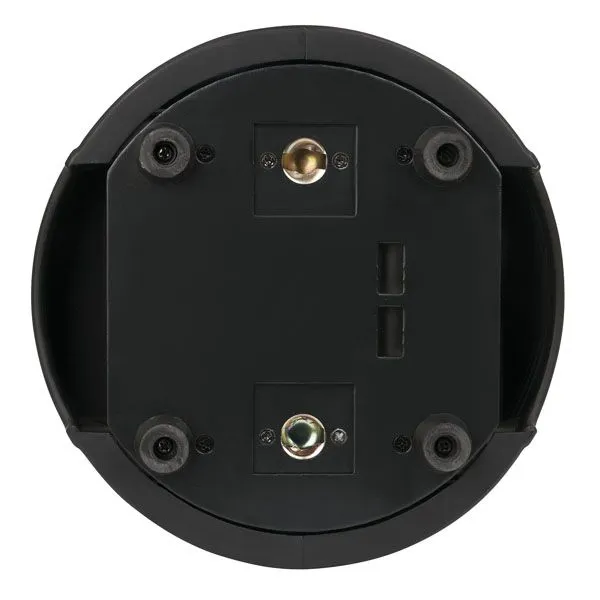

The Showtec Saber is a compact moving head in a stylish round design. It has a fully illuminated 94mm lens with 4° beam angle. Together with the 60W RGBW Osram Ostar LED it creates powerful narrow multicoloured beams. The saber is equipped with high torque motors to create fast continuous rotating movements. With only 215mm diameter and one clamp rigging it is very easy to create narrow setups with multiple fixtures in truss systems.

Continuous pan & tilt
94mm 4° Lens
60W RGBW Osram Ostar
Extreme fast movements

Specifications

Output Beam Angle - 4°
Light Source - 1x60W RGBW LED
Electrical Input Voltage - 100-240 VAC
Power consumption - 90W max. at full output

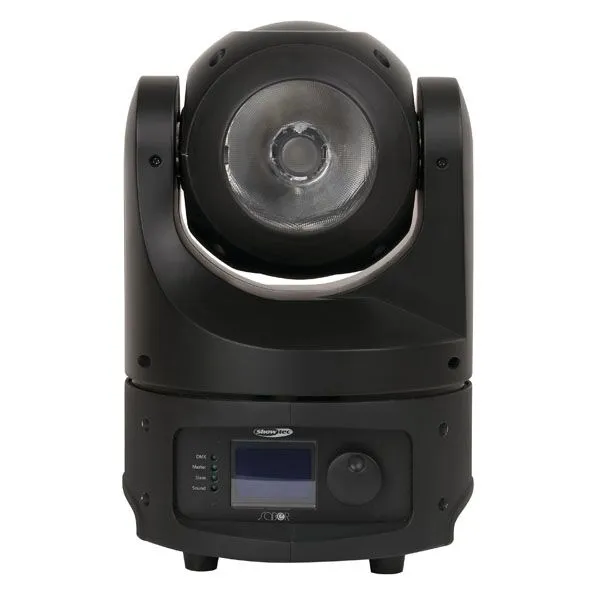

Control - On-Board Display including gravity sensor
Mode - DMX, Auto, Sound & Master/Slave
Control Protocol - DMX512
Control Personality - 10, 14, 18 Channels
Dimmer - 0-100%
Dimmer curves - Linear, Square, I-Square, S curve
Strobe - 0-20Hz
Movement - Pan 540° & Continuous Tilt 270° & Continuous Pan/Tilt resolution 16 bit
Physical Colour - Black
Housing - Metal & Flame-retardant plastic

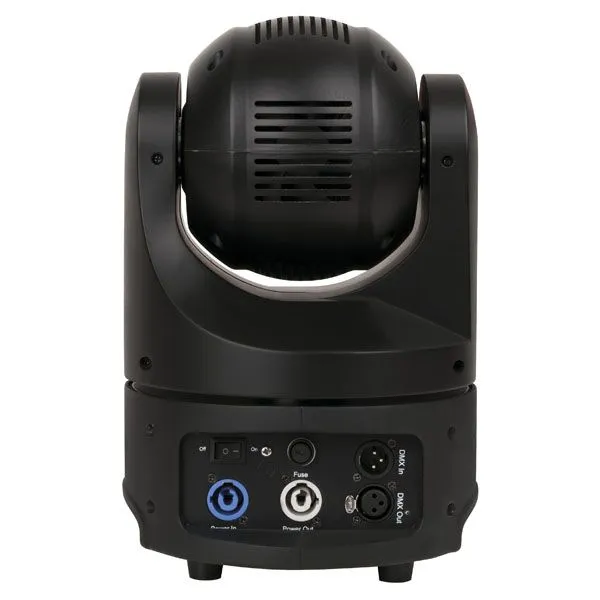

Data Connections - XLR 3p Data in- & output
Power Connections - Pro Power in- & output
Dimensions (DxH) - 215x 330mm
Weight - 5,2 kg
Certification and Safety Certification - CE
Max. ambient Temp. - 40°C
