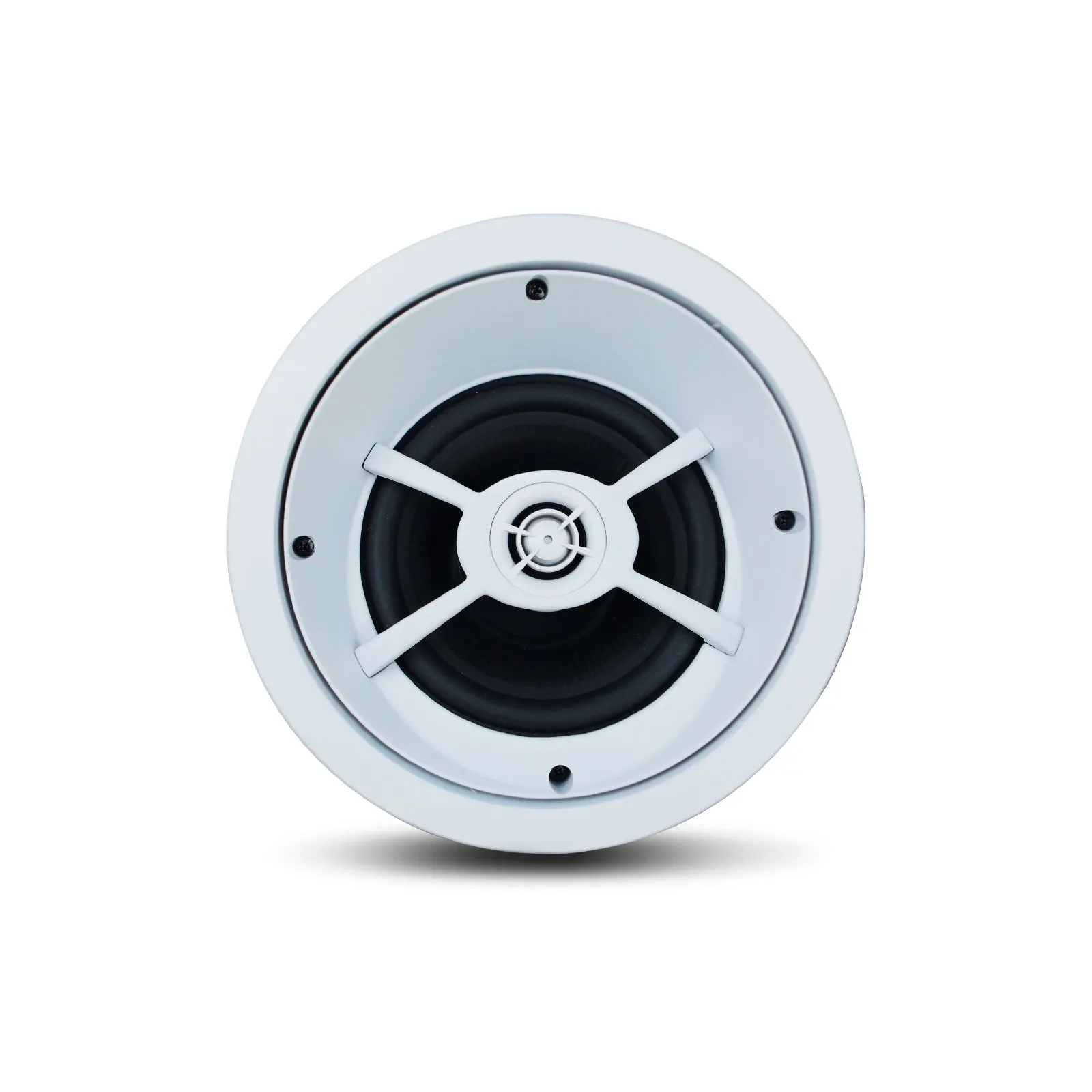

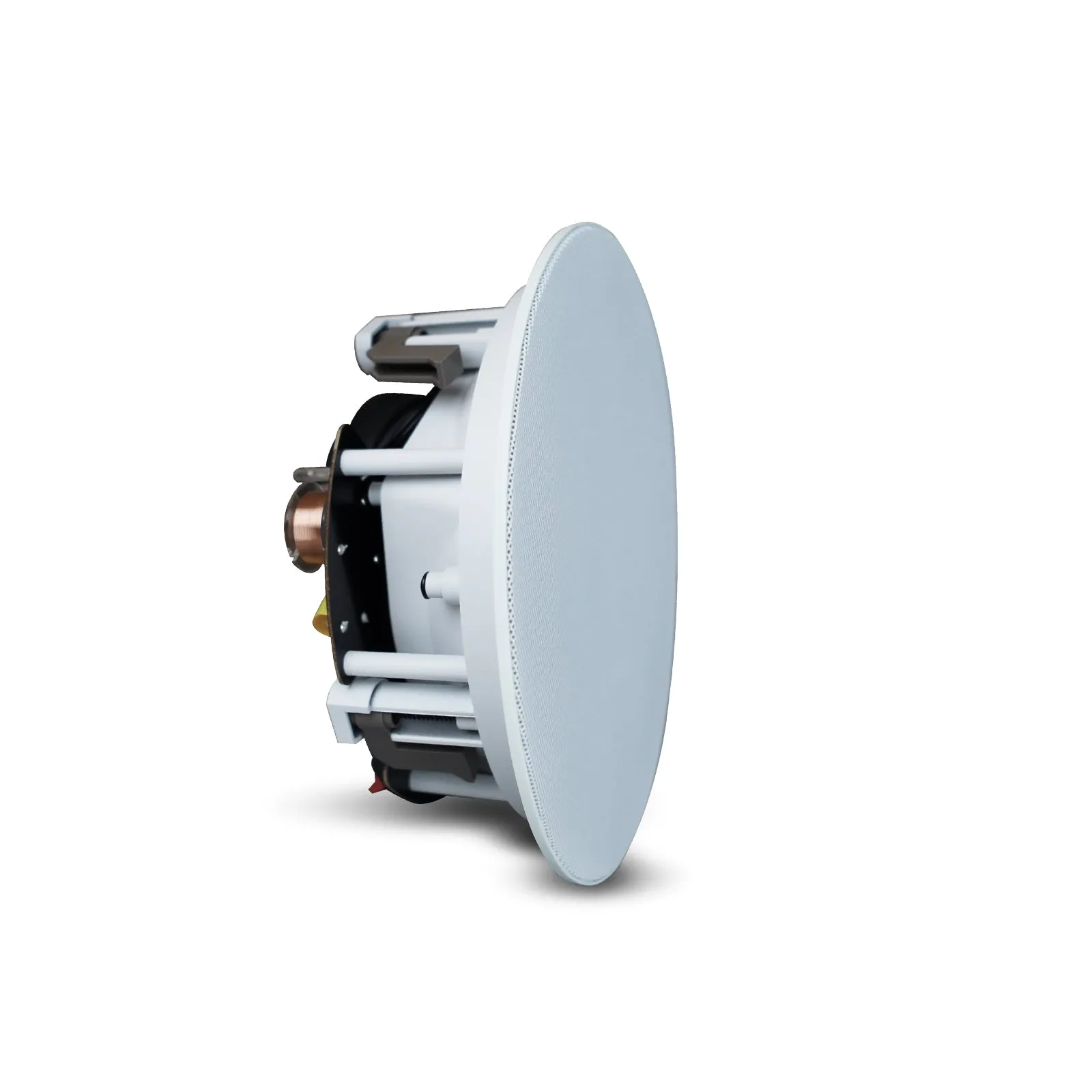

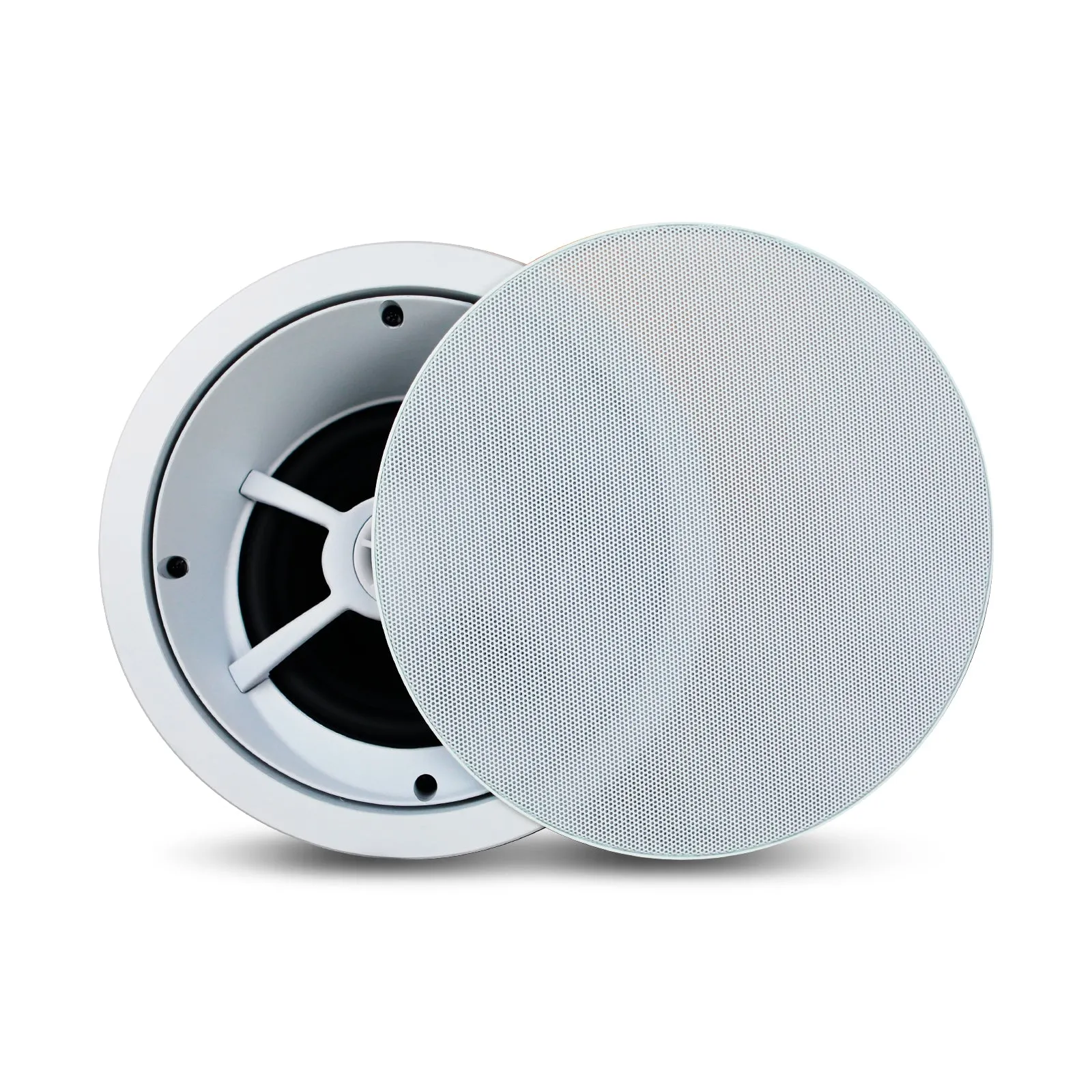

Product Details
＋
| Product Name | 6.5" Angled LCR Ceiling Speaker |
| Drivers | 6.5" Graphite Woofer，Fixed at a 15° Angle，1″ Pivoting Aluminum Dome Tweeter |
| Frequency Range (-10dB) | 60Hz – 20kHz |
| Sensitivity | 86dB 1W/1m |
| Coverage Angle | 90° conical |
| Maximum SPL (1m) | 103dB continuous,106dB peak |
| Impedance | 8 Ohms |
| Transformer Taps | Without transformer |
| Recommended Protective High Pass | 45 Hz high-pass （24dB/oct） for 8ohm direct |
| Power Capacity (at low-Z) | 50 Watts Continuous Program Power/30 Watts Continuous Pink Noise |
| Input Connectors | Plastic spring connector |
| Tap Selector | Without tap selector |
| Materials | ABS surface frame |
| Grille Color | White |
| Safety Agency | |
| Dimensions (Diameter & Depth) | 9-¼” x 4-9/16″ |
| Net Weight | 2.215 kg(one speaker) |
| Shipping Weight | 2.65kg ea;8.8 kg ( 3 PCS in master carton) |
| Ceiling Cutout Size | 8-¼” |
| Suspension / Safety-Seismic Attachment Points | Installer-friendly Dog Ear Installation Brackets |
| Power Rating | 2.5 - 50W |
| Color | White |
| Backcan | Without Backcan |
| Baffle/Rim | ABS baffle |
| Plenum Usage | Without Plenum |
