Product Details
＋

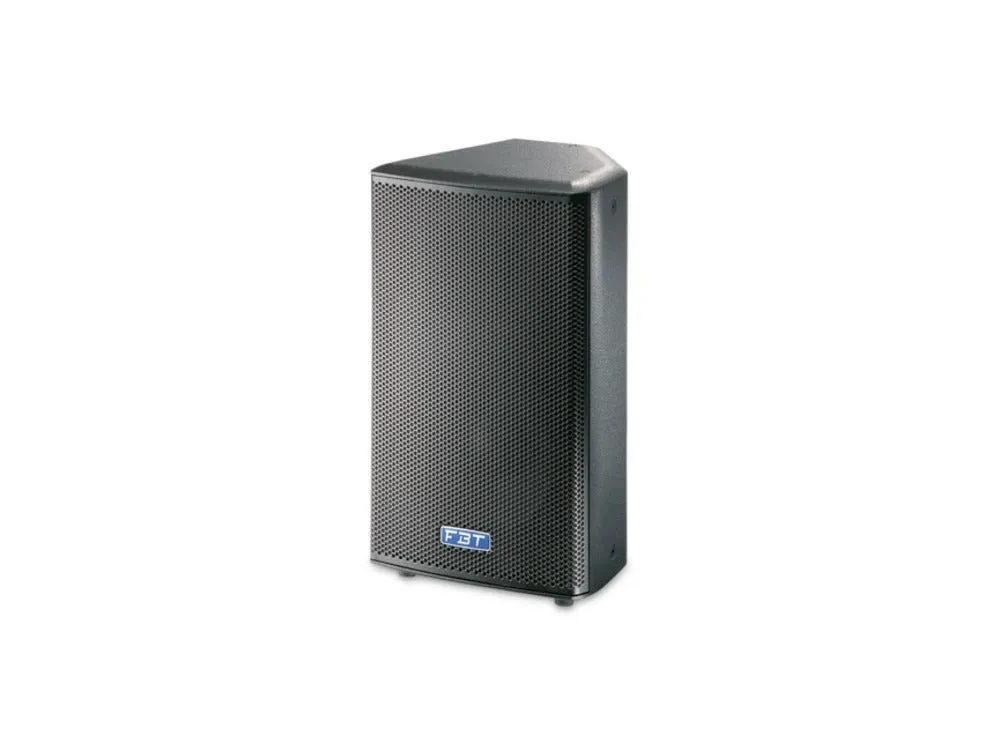

The MITUS 112 is a passive cabinet featuring a B&C 12" Low Frequency with a 1" exit 1.7"VC High frequency driver capable of up to 131dB SPL. Housed in Birch Ply wood and covered in our tour grade black finish
- Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers.
- Speakon NL4MD-V connectors IN & LINK OUT.
The MITUS 112 is a passive cabinet featuring a 12" Low Frequency with a 1" High frequency driver capable of up to 131dB SPL.
- Long Term Power - 350w
- Short Term Power - 1200w
- Recommended amplification - 700w RMS
- Nominal Impedance - 8 ohm
- Sensitivity (@1W/1m) - 99dB
- Recommended HP Filter - 40hz - 24dB Octave
KEY FEATURES
- 2-way bass-reflex design
- Passive version, recommended amplifier of 700Wrms / 8ohm
- Hi-grade passive internal crossover featuring “soft-trip” circuitry protection of LF and HF transducers
- Speakon NL - 4MDV connectors IN & LINK OUT
- 320 mm (12’’) B&C neodymium magnet woofer with 75 mm (3’’) voice coil
- 25 mm (1’’) exit B&C neodymium magnet HF driver with 44 mm (1.7’’) voice coil with 80°H x 50°V rotatable horn
- Frequency response from 55Hz to 18KHz
- 15 mm (5/8”) birch plywood enclosure, scratch resistant black paint finish
- Eight M10 fly points, 35 mm (1.38’’) speaker stand socket and two FBT design aluminium handles
- Ideal for live sound reinforcement applications as both front of house main PA, and as a stage monitor. Also suited for permanent installations
- Very lightweight, only 18Kg
Specifications
- Configuration: 2 Way
- Frequency response: 55Hz - 18KHz @ 6dB
- Low frequency woofer: 1x 12
- High frequency driver: 1x 1
- Maximum SPL cont/peak: 127dB / 131 dB
- Dispersion: 80 x 50 (H x V)
- Crossover frequency: 1.6khz
- Input connector: 2x Speakon NL4 - In & Thru
- Net Dimension (WxHxD): 380 x 660 x 280mm / 15 x 26 x 15in
- Net Weight: 18kg / 39.7lb
- Transport Dimension (WxHxD): 485 x 495 x 750mm / 19.1 x 19.5 x 29.5in
- Transport Weight: 20kg / 44.1lb
