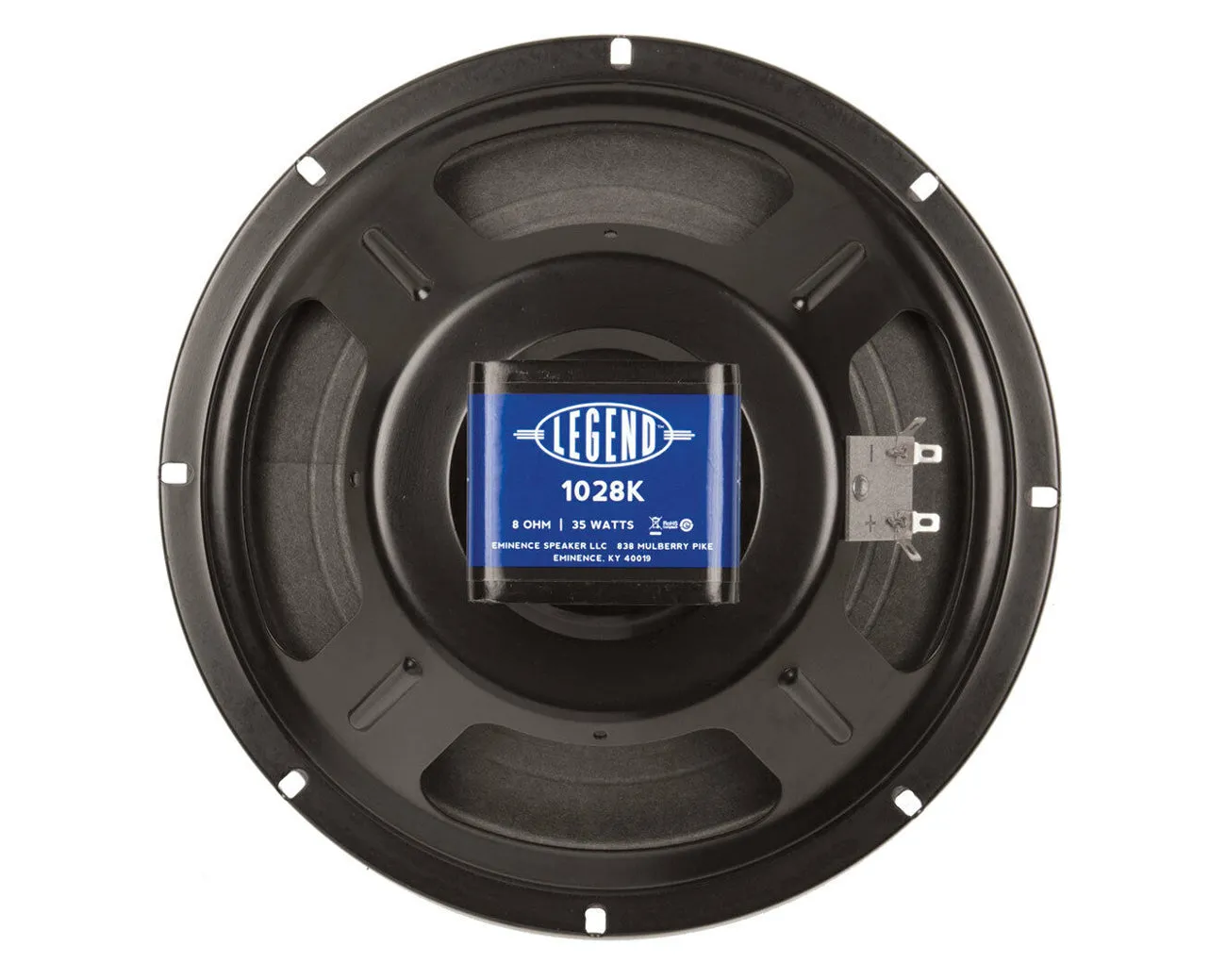

The Eminence Legend 1028K 35 Watt, 8 Ohm guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.

SPECIFICATIONS

• Nominal Basket Diameter: 10", 254 mm
• Nominal Impedance: 8 Ω
• Watts: 35 W
• Resonance: 95 Hz
• Usable Frequency Range: 100 Hz - 5 kHz
• Sensitivity: 97.4 dB
• Magnet Weight: 6 oz.
• Gap Height: 0.25", 6.4 mm
• Voice Coil Diameter: 1", 25 mm

MOUNTING INFORMATION

• Recommended Enclosure Volume: Sealed: Acceptable, Vented: Acceptable
• Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
• Overall Diameter 10.11", 256.8 mm
• Baffle Hole Diameter 9.13", 231.9 mm
• Front Sealing Gasket Yes
• Rear Sealing Gasket N/A
• Mounting Holes Diameter 0.22", 5.6mm
• Mounting Holes B.C.D. 9.6", 243.8mm
• Depth 4.8", 121.9 mm
• Net Weight 2.9 lbs, 1.32 kg
• Shipping Weight 4 lbs, 1.81 kgs

MATERIALS OF CONSTRUCTION

• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Alnico magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition: Paper cone edge
• Dust Cap Composition: Solid composition felt dust cap

Product Specs

• Item Number: 16201
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Made In: United States
• MPN: LEGEND1028K
• UPC: 876358000630
