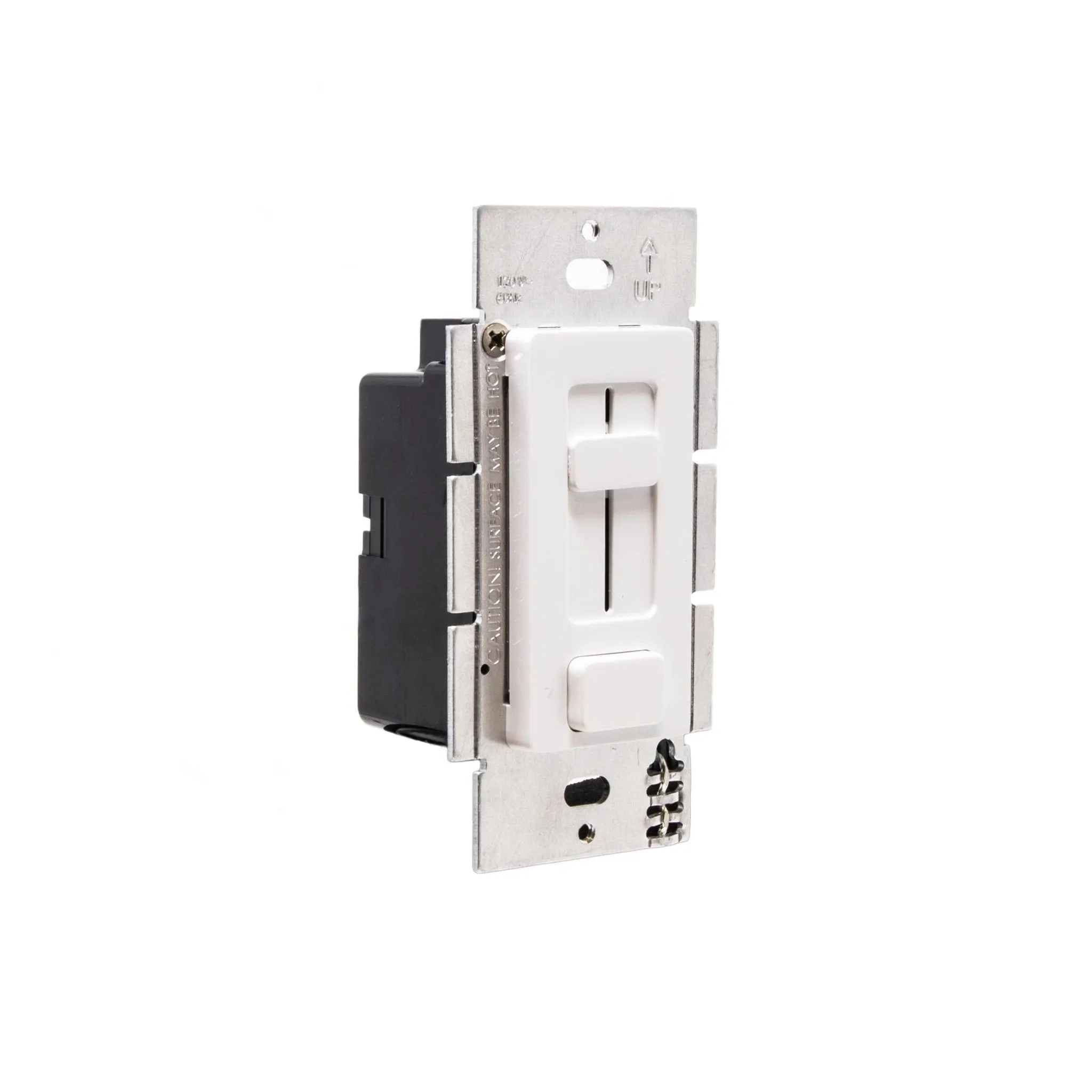

SWITCHEX® Driver and Dimmer Switch
SWITCHEX simplifies LED array lighting systems by combining an inwall LED dimmer switch and power supply into a single integrated unit. SWITCHEX mounts in a standard in-wall switch box, accepts 120V AC and converts to low voltage DC. SWITCHEX is compatible with most solid color 12V and 24VDC tape lights and fixtures.
- First LED Driver In-Wall Dimmer Switch in one unit.
- Simplifies LED installation by eliminating compatibility issues between driver and dimmer. • Fits in a standard recessed electrical box.
- 100% - 5% smooth dimming.
- No minimum load.
- Single Pole preset dimmer with on/off push switch.
- Adjustable voltage output dial to address voltage drop.
- Includes voltage barrier partition to install high and low voltage circuit in same switch box.
- No derating required when ganging units.
- Power failure memory: If power is interrupted, SWITCHEX will return to setting prior to interruption.

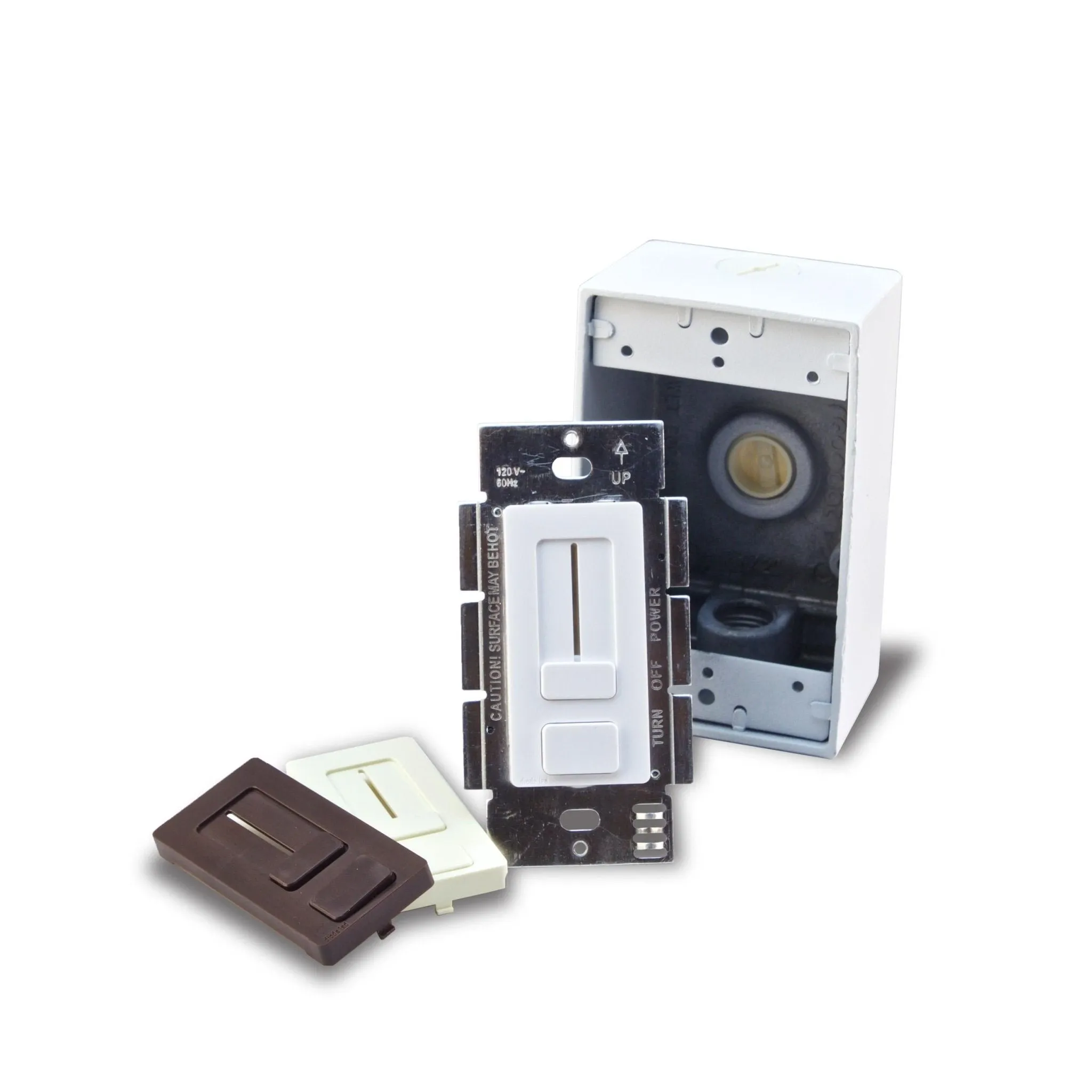

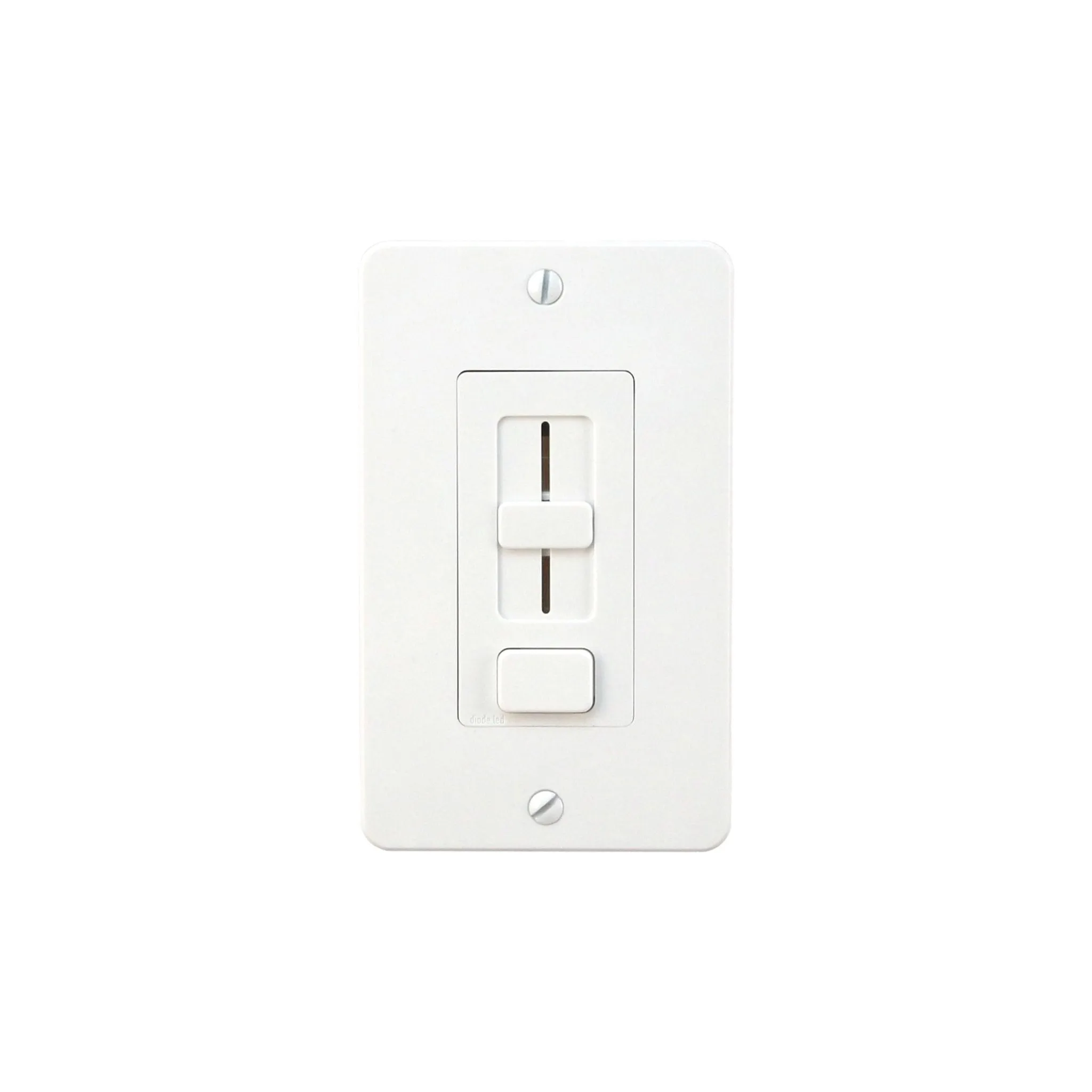

- 3x included face plates: Glossy White, Glossy Light Almond, and Glossy Dark Brown (trim plates not included).
Spec Sheet
Info
| Input |
| Input Voltage |
120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz) |
| Power Factor |
>0.9 @ 120VAC 60Hz max load |
| Total Harmonic Distortion (THD) |
≤20% @ 120VAC 60Hz max load. Tested to comply in accordance with IEC 61000-3-2 |
| Stand-by Power |
Tested : ≤0.5W |
| Efficiency |
≥91% @ 120VAC max load |
| Input Current |
<1.0A @ 120VAC max load |
|
In-Rush Current |
Meets NEMA-410 requirement at any nominal input full sine wave voltage and maximum load at 25°C |
| Leakage Current |
<500µA @ 120VAC |
| Surge/Transient |
Tested to meet transients defined in IEC 6100-4-4, level 3 & IEC 6100-4-5, level 3 |
|
| Output |
| Dimming |
Output voltage is adjustable via sliding level |
| Voltage Adjustment Dial |
Increases output 1V to compensate for voltage drop from control to luminaire |
| Startup Time |
The main supply output voltages remain within the regulation limit of /- 3%. |
| Protections |
Short circuit, thermal runway, and over voltage |
| Output Ripple Current |
≤20% of the rated output current @ 120VAC max load |
|
| Environmental Requirements |
| Indoor use only
|
| Ambient Operating Temperature: 0°C to 40°C |
| Humidity: 8 ~ 90% relative humidity, non-condensing. |
|
Additional Info
| cULus Listed (US & Canada) Low Voltage Lighting System #E469769. |
| FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. |
| RoHS Certified |
| CE Certified
|
| Conforms to NEC Code 725.136 (See Mechanical Diagram): Class 1 and Class 2 circuit in same enclosure must be separated by a barrier (partition) unless Class 2 circuit conductors are install in accordance with 725.41 Class 1 Circuits. |
