Product Details
＋
Features Include

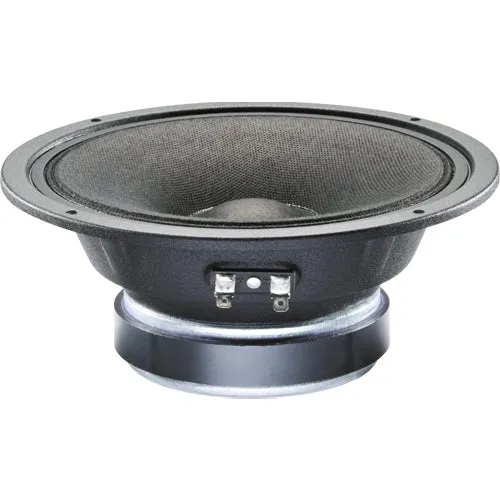

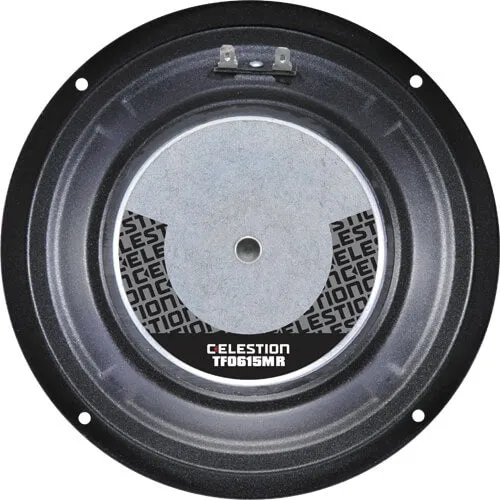

- 6" mid-range driver providing 97dB sensitivity and 50Wrms (AES standard) power handling
- 1.5" high temperature copper voice coil wound on polyimide former for increased reliability
- Very compact model suitable for use in 3-way systems
- Optimised to deliver detailed reproduction of mid-range frequencies
- Closed back chassis simplifies cabinet manufacture, eliminating need for separate mid-range enclosure
General Specifications
Nominal diameter: 152mm/6in
Power rating: 50Wrms
Continuous power rating: 100W
EIA power rating: 75W
Nominal impedance: 8Ω
Sensitivity: 97dB
Frequency range: 500-5000Hz
Voice coil diameter: 38mm/1.5in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.48kg/17oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Small Signal Parameters
Fs: 500Hz
Re: 5.7Ω
Le (at 1kHz): 0.294mH
Mounting Information
Overall diameter: 178mm/7.01in
Overall depth: 74mm/2.91in
Cut-out diameter: 147mm/5.79in
Mounting slot dimensions: Ø 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 168.5mm/6.63in
Unit weight: 1.4kg/3.1lb
