Product Details
＋
Features Include

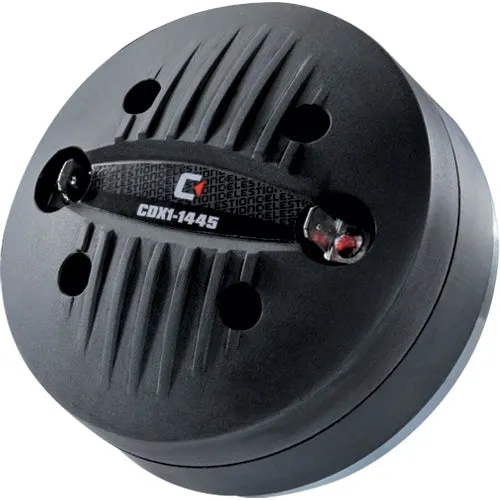

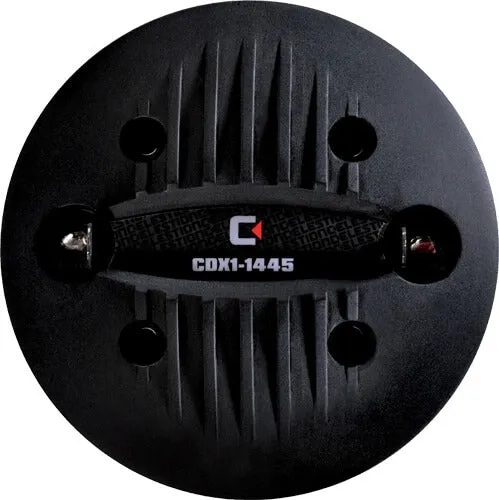

- 1" exit lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil
- 20Wrms power handling (AES standard) and 106dB sensitivity
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) techniques used to optimize both magnetic and acoustic design
- Suitable for 2-way and 3-way systems
General Specifications
Power rating: 20Wrms
Continuous power rating: 40W
Nominal impedance: 8 ohm
Frequency range: 1,500-20,000Hz
Sensitivity: 106dB
Recommended min. crossover (12dB/oct): 2,200Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Copper clad aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Mounting Information
Width: 90mm/3.5in
Depth: 52.0mm/2.1in
Weight: 1kg/2.2lb
Fitting: Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit: 25mm/1in
Compatible Horns
,
