Product Details
＋

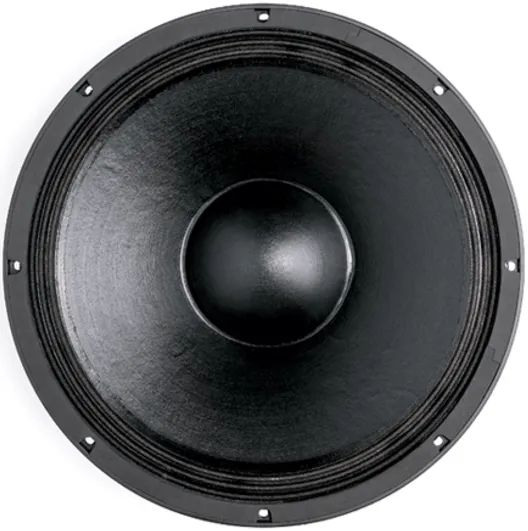

15" high efficiency Neodymium woofer.
|
SPECIFICATIONS Nominal Diameter: Nominal Impedance: Nominal Power: Freq. Response: Sensitivity: Voice Coil Diameter: |
15", 380mm 8 ohms 500w rms, 1000w program 40 Hz-2.0 kHz 99.5 db 1w/1m 3", 76mm |
|
MOUNTING INFORMATION Overall Diameter: Baffle Hole Diameter: Mounting Hole BCD: Depth: |
15.5", 393mm 13.9", 354mm 14.7", 374mm 6.7", 171mm |
|
T/S PARAMETERS Fs: Re: Le: Qms: Qes: Qts: Vas: Xmax: |
37.0 Hz 5.3 ohms 1.5mH 4.5 0.24 0.22 195 L, 6.8 cuft 7mm |
|

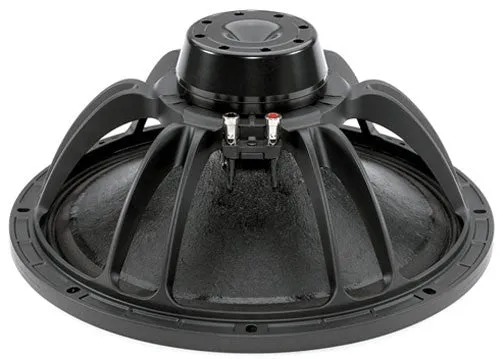

CONSTRUCTION -Cast basket -Neodymium magnet with vented voice coil |
