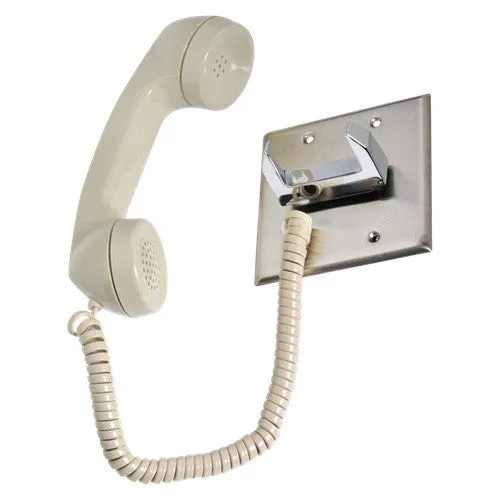

The CE-2A-PT features a standard "500" style neutral color handset with a chrome hookswitch, and brushed stainless steel plate. The hookswitch is a leaf type with cross bar palladium contacts for long-life and trouble-free operation. Model CE-2A has a flexible coil cord. With factory-installed pushbutton switch located conveniently on the handset. The switch-contact arrangement is form "C" (SPDT) and is wired as form"A" (SPST). Configuration is ideal for use in relay-control, pushto-call, and a variety of other switch, communication, and signaling applications.

Features:

• Brushed Steel Wall Plates Fit Standard Electrical Boxes (Hardware Included)
• Circuitry Provides Precise Speech Reproduction.
• DPDT Style Hookswitch can be Wired as Form A, B, or C to Meet Your System Needs.
• Shipped Assembled and Wired to a Barrier Strip Terminal Block on the Mounting Plate with Color Coded Leads and Spade Plugs.
• Units are Designed for Use with Telephone Intercoms or Paging Systems

Specifications:

• Height 4 1/2" (11.43 cm)
• Width 4 1/2" (11.43 cm)
• Depth 2 1/4" (5.715 cm)
• Shipping Weight 1.50 lbs (0.68 kgs)
