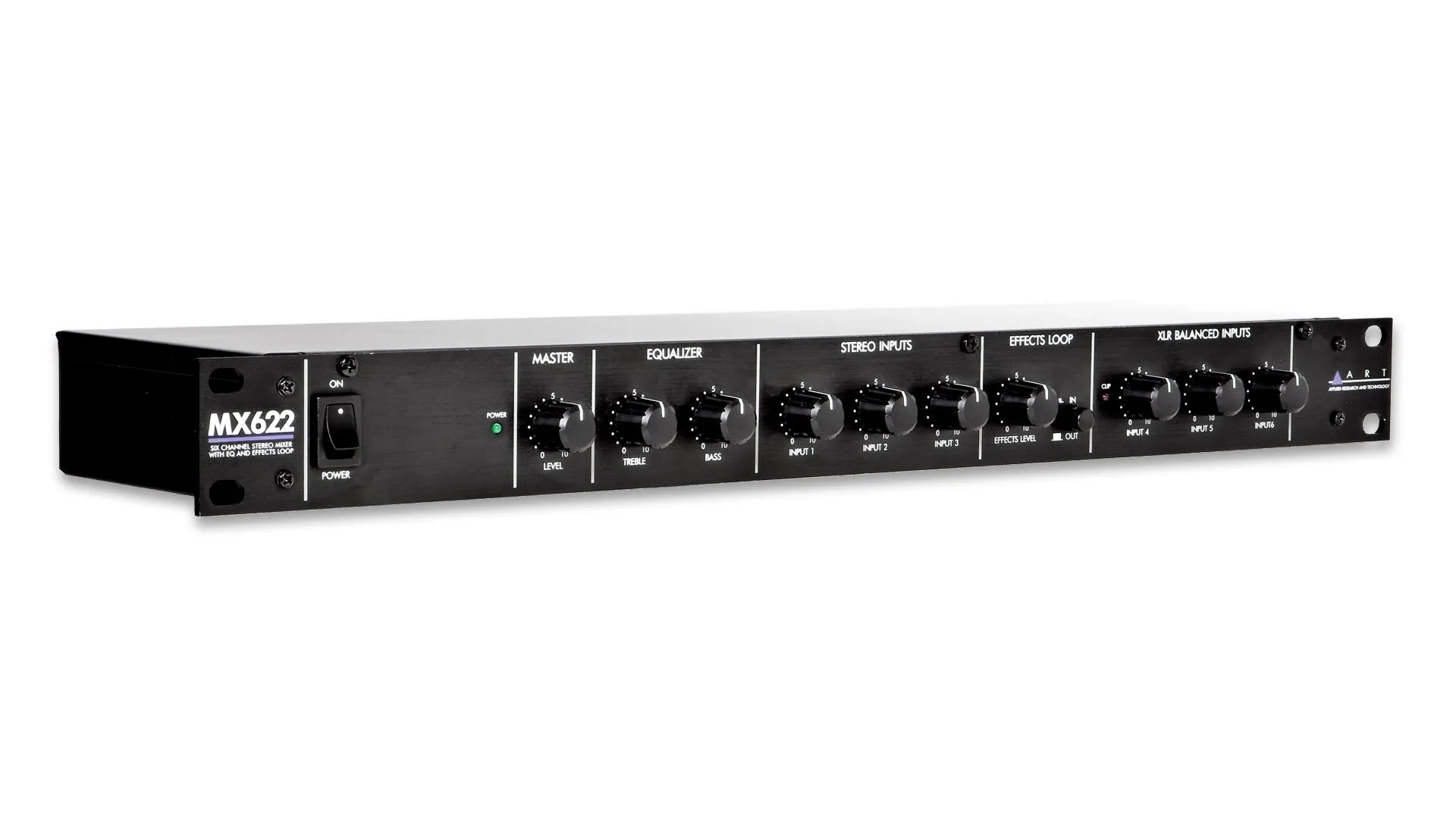

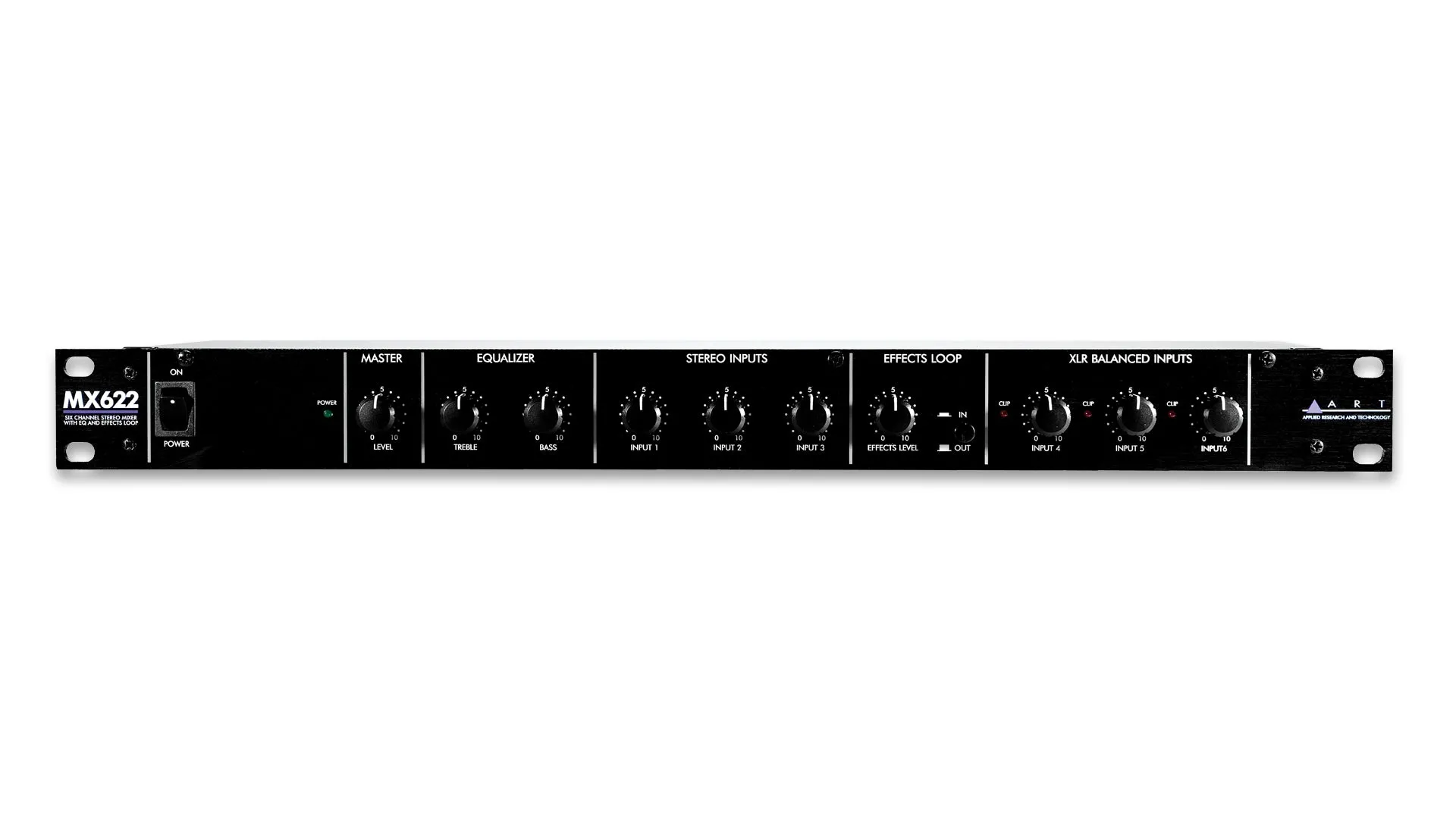

The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single rack-space 19-inch rack mount format allows for easy installation and reliable long-term operation.

Features:

• Three Balanced XLR Inputs Switchable Mic/Line Level

• Three Stereo RCA Inputs with Separate Level Controls

• Level Control and Clip Indicators

• Selectable 15-volt Phantom Power for Mic Channels

• Balanced TRS 1/4-inch Main Output Jacks with Master Level Control

• Versatile Two-Band Master EQ

• Separate Stereo Record Outputs

• Effects Loop with Level Independent Level Control
