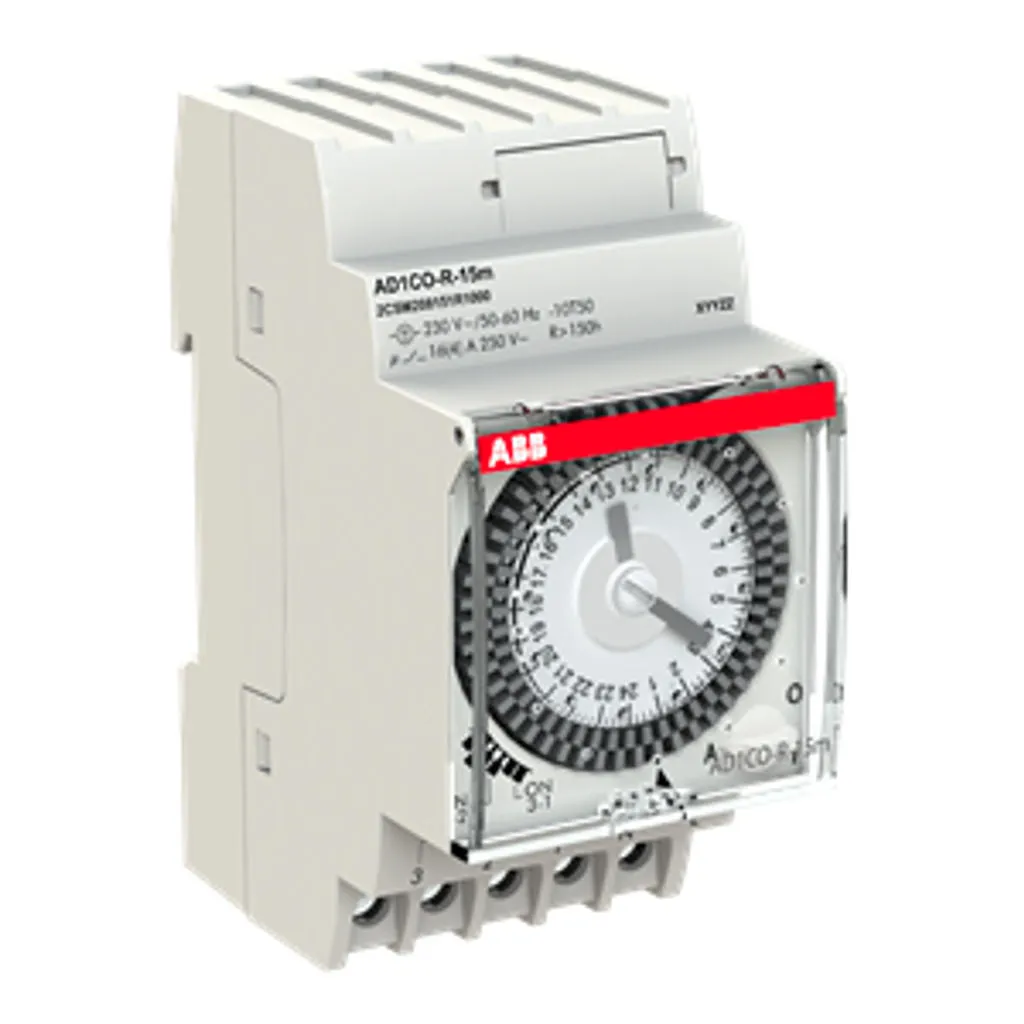

Product Description
-
These analog timers are designed for installation on DIN-rail
-
They control circuit opening and closing according to the scheduled program
-
Available both on daily and weekly versions and equipped with a 16 A contact
-
They can be set on the scheduled program or on the permanent ON-OFF function
-
The AD1NO-R-15m, AD1CO-R-15m, AW1CO-R-120m, AD1CO-R- 30m, AW1CO-R-210m versions are equipped with a built-in battery, charged by the network voltage, which allows the devices to maintain the set time also in case of long (up to 150 h) power supply failures
-
The products fit applications such as control of lighting systems of shops or commercial buildings, heating and ventilation systems as well as control of automatic irrigation systems of private or external gardens
Product Specification
|
Brand |
ABB |
|
Product Type |
Analog Time Switch |
|
Product Code |
2CSM208151R1000 |
|
Model |
AD1CO-R-15m |
|
Technical |
|
|
Standards |
EN 60730-2-7 |
|
Function |
Daily |
|
Rated Operational Voltage |
230 V |
|
Operational Voltage |
Maximum (Incl. Tolerance) 195 V AC Maximum (Incl. Tolerance) ...253 V AC |
|
Supply Voltage |
230 V |
|
Rated Frequency (f) |
50 ... 60 Hz |
|
Maximum Load Capacity |
Resistive load 16 A Inductive Load 4 A |
|
Maximum Switching Power |
4000 V·A Incandescent 3000 W Fluorescent 1200 V·A Low voltage halogen 2000 V·A Halogen 3000 W Low consumption lamp(CFL) 900 V·A LED 100 V·A |
|
Power Consumption (@Pcons ) |
0.5 W |
|
Power Loss |
0.5 W |
|
Power Supply |
(-15%.. 10%) 230 V AC |
|
Accuracy |
Operating accuracy: ± 1 second/day at 23°C Switching accuracy: ± 5 minutes |
|
Number Of Channels |
1 |
|
Tightening Torque |
0.5 N·m |
|
Minimum Switching Time |
15 minute [unit of time] 96 |
|
Contact Type |
Change-Over (CO) |
|
Meter Type |
Electromechanical |
|
Mounting Type |
DIN rail |
|
Options Provided |
With running reserve |
|
Battery Chemical |
Nickel-Metal Hydride |
|
Composition |
|
|
Battery Life |
150 hour |
|
Battery Type |
Button Cell |
|
Battery Weight |
0.004 kg |
|
Number Of Batteries |
1 |
|
Connecting Capacity |
Solid 4 mm2 |
|
Terminal Type |
Captive Screw |
|
Environmental |
|
|
Ambient Air Temperature |
Operation -10 ... 50 °C Storage -20 ... 70 °C |
|
Degree Of Protection |
Housing IP20 |
|
Dimensions |
|
|
Width In Number Of Modular Spacings |
2.5 |
|
Product Net Width |
44 mm |
|
Product Net Height |
ABB Analog Time Switch AD1CO-R-15m 2CSM208151R1000$ 65.52 $ 50.40 Please select combo product attributes
