Lithonia Lighting's BLT Series are low-profile recessed LED luminaires. With a popular center basket design, shallow fixture-depth for easy installation, plug-n-play control options and reliability backed by Lithonia Lighting - all at an attractive price - the BLT Series is your best-in-value ambient lighting solution for commercial projects. The BLT's low profile design of only 2-3/8" provides increased installation flexibility especially in restrictive plenum applications. This 2x2 LED light fixture fits into standard and narrow T-grid ceiling systems and is suitable for damp locations.

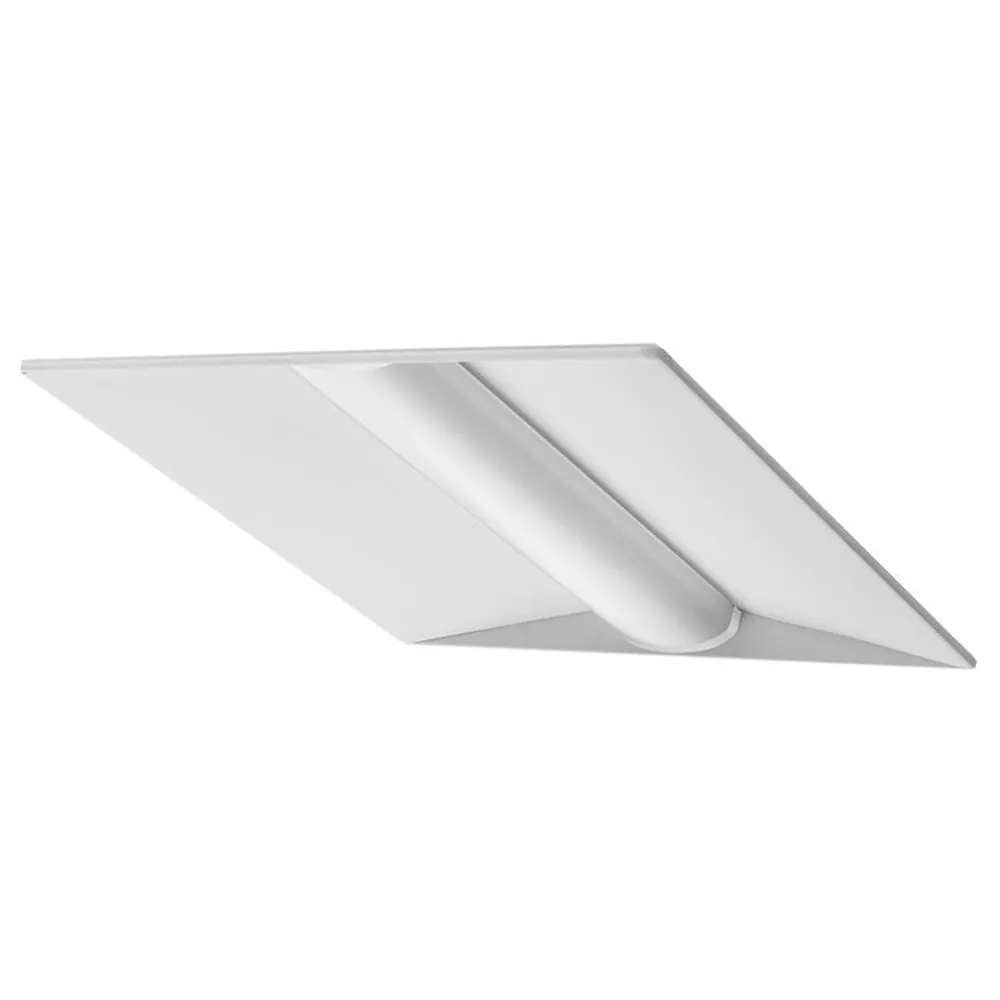

Lithonia Lighting's 2BLT2 33L ADP LP8(XX) recessed LED luminaire is a single basket LED light fixture with volumetric illumination that is achieved by creating an optimal mix of light to walls, partitions, and vertical and horizontal work surfaces. This renders the interior space, objects, and occupants in a more balanced, complimentary luminous environment. Consuming 30 watts at 120-277v, the troffer produces 3,300 lumens in either 3500K bright white or 4000K cool white light. This LED drop ceiling light fixture features a curved ribbed acrylic diffuser that conceals LEDS and efficiently delivers light in a volumetric distribution. The long-life LEDs, coupled with high-efficiency drivers produce a 70% LED lumen maintenance for 60,000 hours (L70/60,000) and has a 5 year limited warranty. This LED 2x2 lay in troffer also comes with a generic 0-10V dimming driver that dims to 10%. These fixtures also come in a nLight Air enabled model.

The BLT enclosure components are die-formed for dimensional consistency and painted after fabrication with a polyester powder paint for improved performance and protection. End plates contain easy-to-position integral T-bar clips for securely attaching the 2x2 LED panel to the T-grid.  LED boards and drivers are accessible from the plenum. This fixtures dimensions are 23-3/4" long by 23-3/4" wide and 2-3/8" deep.
